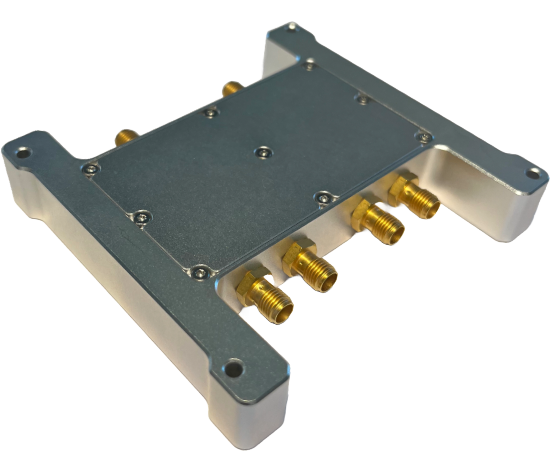

SRU-2 Passive S-band Splitter/Combiner
The Satlab SRU-2 is a passive S-band splitter and combiner module, designed for use at the ITU space operations S-band frequencies. The module functionality is implemented using two independent Wilkinson divider/combiner paths.
Features
- Low insertion loss (typ. 0.2 dB)
- Power handling up to 5 W
- SMA connectors on all ports
- CubeSat Kit form factor compatible aluminum enclosure
Key Parameters
| Parameter | Specification |
|---|---|
| Frequency range on both paths | 2000 to 2500 MHz |
| Insertion loss | Typ. 0.2 dB |
| Power handling | 5 W |
| Operating temperature | -40℃ to +85℃ |
| Dimensions | 87.2 × 93.0 × 15.7 mm |
| Mass | 181 g |
Additional Resources
Customization
Custom hardware and software requests can often be accommodated. Please see the R&D section
